Hatched sections38 patterns
Per-material hatching generated at drawing scale, with layer-by-layer fills through compositions. Thin layers fall back to a coarser pattern instead of turning into mud.
Walls, slabs, roofs and stairs that know what they are made of, and draw themselves into LayOut with proper hatches and symbols. The same model opens as IFC in any viewer your engineer or client uses.
Free 30-day trial, no card required. Windows and macOS.
Featured in AEC Magazine: SketchUp add-on brings BIM to smaller practices
WindowIfcWindowDuctIfcDuctSegmentStairIfcStairSlab, layeredIfcSlabWalls with live mitres, openings, roofs, slabs, stairs, beams, footings, MEP.
GlobalId, property sets, quantities and material layers written as you draw.
Plans per storey, named sections, elevations, hatched cuts, 2D symbols.
A .layout file at a fixed scale, one page per scene, ready to annotate.
Standard IFC4 that opens in any IFC viewer, with layers, openings and properties intact.
You draw the building once. The plans, the schedules, the LayOut file and the IFC are generated from it, so when you move a wall, every one of them moves with it.

Every layer of the build-up hatched, at the scale you print.

Numbers, areas and finishes, counted from the model.

Plans and elevations on sheets, ready to dimension and print.

Your engineer or client sees the same walls, layers and properties you modelled.
A real hospital, modelled in SketchUp with Archeform BIM. Structure, every room and bathroom, ventilation and plumbing, and the existing and new state as sets you switch with one click, in 3D and in the plan.
A building this size is where extensions usually start to drag. For 1.1 we went through every observer, everything that runs in the background while you model, and tuned whatever we could.

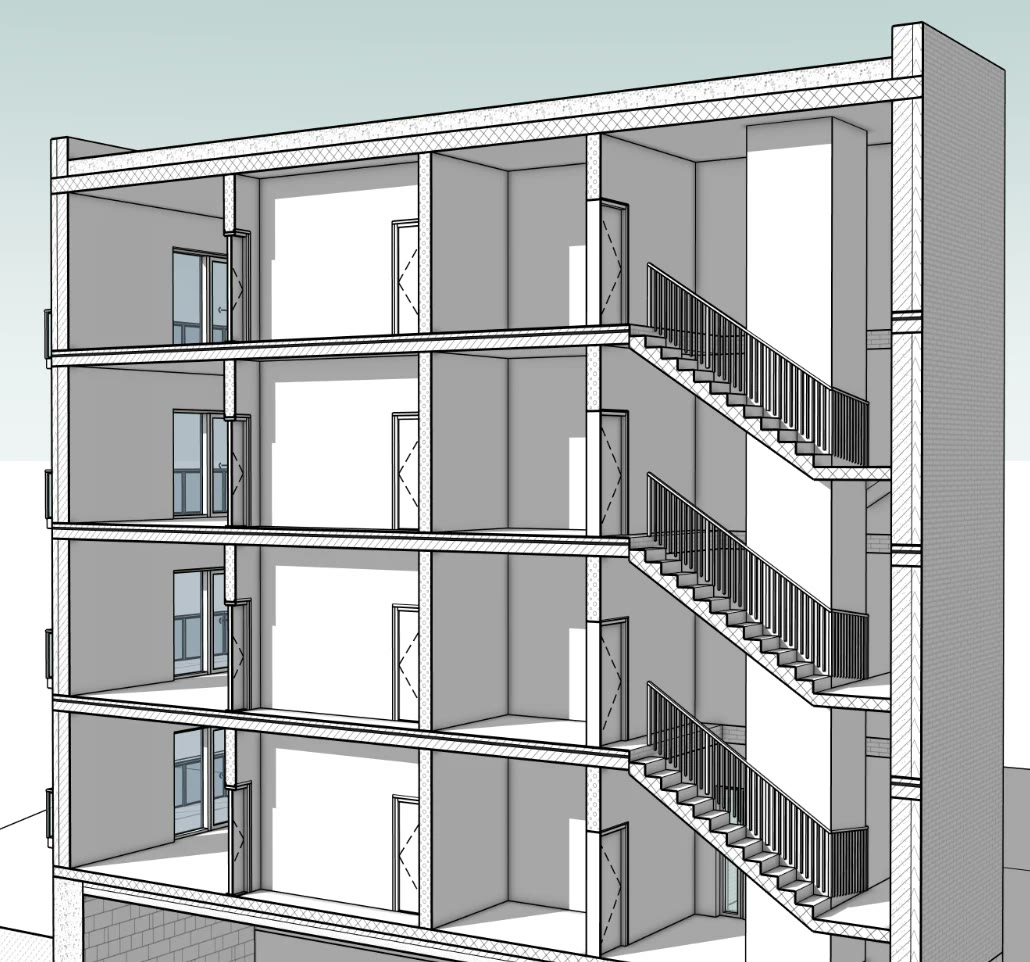

Walls, windows and doors, a slab, a stair and a roof — drawn in SketchUp with Archeform.
The model is finished, and then plans and sections get drawn a second time by hand. Every change has to be made twice.
SketchUp exports geometry. Windows and doors nested inside walls don't come out at all, and there are no quantities, property sets or material layers.
Well over a thousand euros a year and a season of retraining, to produce documentation for a handful of houses.
Not a wall tool with ambitions. Fourteen element types, each with its own dialog, IFC class, quantities and 2D symbol.
Live mitred corners, join / extend / trim / stretch, offset, mitre ⇄ butt joints, gable walls pulled up to the roof soffit.
Single, double and multi-leaf, fixed, arched, sliding PS/PSK and lift & slide HS portals, four frame types, sidelights and transoms, sills, swing symbols in plan.
Flat, shed, gable and hip — hip on any polygon via straight skeleton. Eave cuts, overhangs, merge, trim, extend, penetrations and skylights.
Slabs from rectangle, polygon or walls, with openings. Straight, L, U and spiral stairs, and a one-click opening cut through the slab above.
European steel catalogue — IPE, HEA, HEB, UPE, L, RHS, SHS, CHS — with real mitres on profiles. Column grids, strip and pad footings.
Ramps to accessibility gradients. Railings free-standing or hosted on a stair, with balusters, glass panels or bars.
Ten systems, real catalogues (HT, KG, Cu, PPR, SPIRO, rectangular duct), segmented bends, tees with saddles, connection ports that snap.
Zones numbered by storey, areas and volumes, finishes, and a room schedule you can export per storey as CSV.
Sanitary ware and furniture with baked 2D symbols, mounting heights and connection ports. System library plus your own shared folder.
Most SketchUp exports are a mesh with a name on it. Archeform writes the entities a checker looks for — and we tested it in the viewers your consultants use.


Archeform IFC is our IFC viewer for Mac. Open the file you exported, or one you were sent, and check it before it goes anywhere. Viewing is free.
Mac with Apple silicon, macOS 26 or later. Mac App Store.
Archeform IFC for Mac →If you have never worked with BIM, start here: what a BIM model is, what an IFC file carries, and where SketchUp fits. Two minutes.
This is where the SketchUp ecosystem stops and Archeform keeps going.
Per-material hatching generated at drawing scale, with layer-by-layer fills through compositions. Thin layers fall back to a coarser pattern instead of turning into mud.
New, existing and demolished derived from the IFC Status property — demolition on a yellow ground with ochre lines, as the drawings are actually printed.
Doors, windows, stairs, ramps, railings and services get proper plan symbols generated from parameters — with the 3D hidden underneath.
Click, click, pick the viewing side. You get a scene, a cut plane, filled cuts and section marks with arrows and letters in every plan.
Room schedule with selectable columns, and an aggregated pipe and fitting schedule by system and size. International CSV, or one file per storey for LayOut.
Storeys, plans, elevations and sections in one palette. One button regenerates every scene and writes the LayOut file at your chosen scale and sheet size.
Everything on this page is in every licence. Updates and support included while your subscription runs.
Archeform BIM 1.1 is out. Launch offer: 20 % off your first year with code THINKBIG, until 30 November.
14-day refund, no questions asked. 30-day trial needs no card.
2024, 2025 and 2026, Windows and macOS, SketchUp Pro or Studio. Modelling and drawings are identical on all three — full IFC (names, quantities, material layers) needs 2026, because that's the version SketchUp itself reads the fuller schema on. Details in the docs.
No. The web version has no Ruby API, so no extension can run there. Archeform needs the desktop application.
The extension switches to read-only: your models still open, and drawings, schedules, IFC and LayOut export keep working — drawing and editing elements is switched off. Finished work is never locked away.
Only to activate. After that it runs offline for three weeks at a time, so a site visit without signal doesn’t stop you.
It's standard IFC4. We test in independent IFC viewers before every release; anything a viewer can't read is a bug we want to hear about.
The interface, dialogs and documentation are English. Drawing conventions follow European practice, with Czech regulations built into the defaults.
Thirty days, every feature, no card. If it doesn’t produce a set you’d submit, you’ve lost an afternoon.
BIM tools for small practices, built by a chartered engineer in the Czech Republic.
